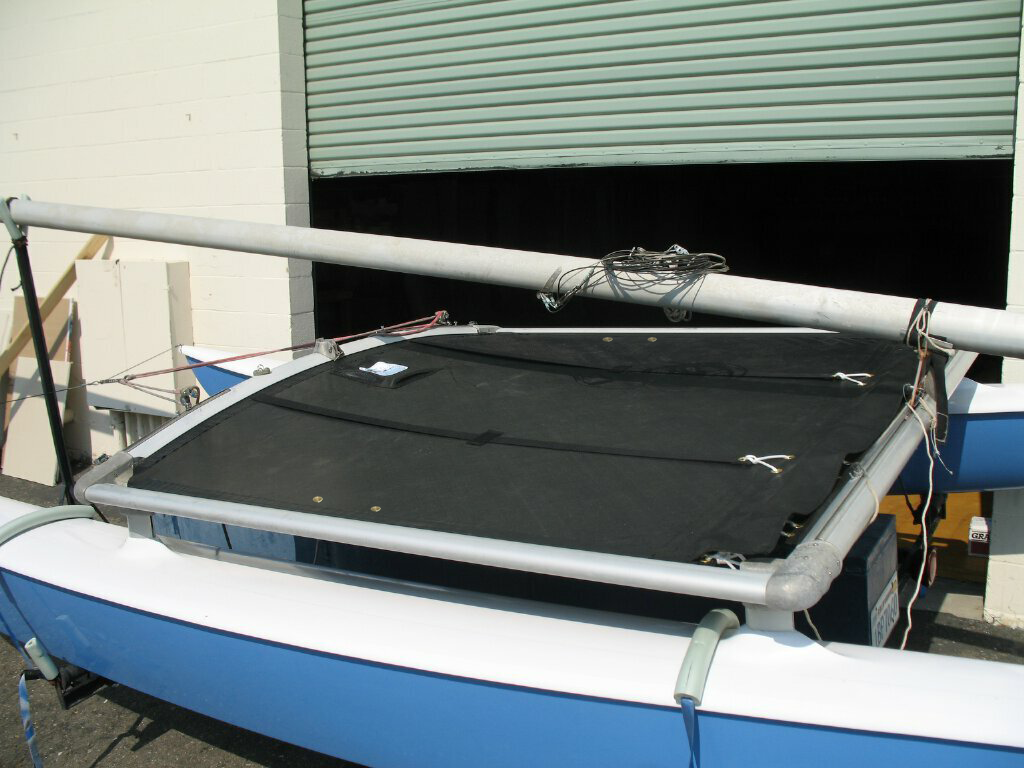

Trampoline to fit Hobie® 16 Catamaran - Bias Cut Mesh

Overview:

Our heavy-duty mesh one-piece bias cut trampoline to fit a Hobie® 16 is very well built with these unique features:

• Bias cut one-piece design for uniform tension
• Rear lacing only with built in rear line catcher
• Adjustable hiking straps
• 12" x 12" halyard pocket near the mast base
• Trapeze grommets at 25" and 31" aft of forward beam on port and starboard side
• Made of high-quality and very durable trampoline mesh (8oz. polypropylene basket weave mesh)
• Sewn with large size V-138 UV-stabilized polyester thread (Teflon thread available as an upgrade for ultimate UV resistance)
• Heavily reinforced with 3" wide heavy-weight polypropylene webbing in grommet areas
• At least five rows of stitching in high-load areas (compared to 2 rows from other manufacturers)
• Multi-layer construction in high-stress sections to better spread the load; three layers of mesh and a layer of webbing
• We personally pound each #4 spur grommet by hand (spur grommets are tough; they have 'teeth' that bite into the fabric)
• Aft grommets installed on 4" centers (Hobie® originally installed them on 6" centers)

Includes:

• One-year warranty against defects in materials and workmanship
• Halyard Pocket
• Hiking Straps

Available Options (at an extra cost):

• Tenara Teflon Thread - By adding this option to your trampoline order we'll sew your new SLO Sail and Canvas trampoline in Tenara Teflon thread by Gore. Tenara has a 15 year warranty in the sun. If you store your boat on the beach this is the best thing you can add to extend the life of your trampoline. Our standard thread is a V-138 polyester thread that is UV stabilized and will last 5-7 years+ in the sun.
• Zippered Pocket - A larger zippered pocket perfect to hold water bottles, lunch, or sunscreen. The pocket dimensions are roughly 15"x18" and 4" tall. Dimensions may vary slightly depending on the trampoline because of other things getting in the way of a bigger pocket such as hiking straps and lacing grommets, trapeze grommets, jib strop grommets etc. We put the pocket inboard of the hiking straps on Hobie 14 and Hobie 16's on the starboard side of the trampoline. Prindle trampolines will have the zippered pocket on the port side of the trampoline inboard of the hiking straps and opposite the standard halyard pocket we include on all trampolines.
• Lace Kit - Pre cut 1/4" (and sometimes 1/8") line to lace up your new trampoline. Available in white or black.

Additional Info:

CLICK HERE to learn more about Tenara Teflon thread.

Note:

Protect your new trampoline with a protective Trampoline Cover!!!

Prev Next

Note on installation:

The side rails will need the track opening towards the front of the boat per the manual. If your boat has the track openings at the back of the boat, you will either need to disassemble the frame and flip the side rails or purchase a 3-piece trampoline. Additionally, the mast step was sometimes installed with extra long rivets which will prevent the forward boltrope of the bias trampoline from sliding all the way across the boat. You can slide your existing trampoline from side to side to determine whether your boat has long rivets. If long rivets were installed, you can drill them out and install the proper rivets (Hobie p/n 8010131 qty. 3). These details are also explained in the video.

Disclaimer:

The Hobie® brand is a registered trademark of the Hobie Cat Company, Oceanside, California. The term Hobie® as used herein means the product manufactured and sold by that company, and is used without the permission of Hobie Cat Company. Our products are neither manufactured nor in any way sponsored or authorized by Hobie Cat Company.
