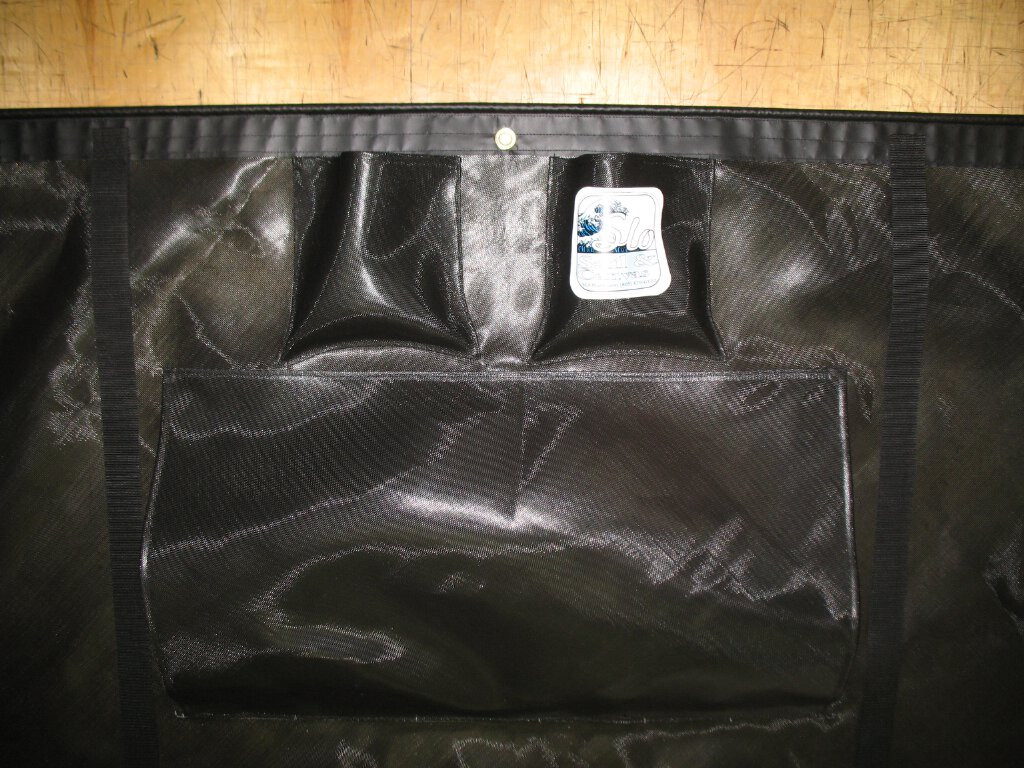

Nacra 6.0 Catamaran Trampoline - Bias Cut Mesh

Overview:

Our heavy-duty Nacra 6.0 BIAS CUT mesh trampoline is very well built with these unique features:

• Bias cut one-piece design for uniform tension
• Rear lacing only with built in rear linecatcher
• Comes with two 12 x 12" halyard pockets near the mast base
• Adjustable hiking straps
• Large pocket for jib wires across the center of the trampoline
• Made of high-quality and very durable trampoline mesh (8oz. polypropylene basket weave mesh)
• Sewn with large size V-138 UV-stabilized polyester thread (Tenara Teflon thread also available)
• Heavily reinforced with 3" wide heavy-weight polypropylene webbing in grommet areas
• At least five rows of stitching in high-load areas (compared to 2 rows from other manufacturers)
• Multi-layer construction in high-stress sections to better spread the load: three layers of mesh and a layer of webbing
• We personally pound each #4 spur grommet by hand (spur grommets are tough; they have 'teeth' that bite into the fabric)

Includes:

• One-year warranty against defects in materials and workmanship
• Halyard Pocket
• Hiking Straps

Available Options (at an extra cost):

• Tenara Teflon Thread - By adding this option to your trampoline order we'll sew your new SLO Sail and Canvas trampoline in Tenara Teflon thread by Gore. Tenara has a 15 year warranty in the sun. If you store your boat on the beach this is the best thing you can add to extend the life of your trampoline. Our standard thread is a V-138 polyester thread that is UV stabilized and will last 5-7 years+ in the sun.
• Zippered Pocket - A larger zippered pocket perfect to hold water bottles, lunch, or sunscreen. The pocket dimensions are roughly 15"x18" and 4" tall. Dimensions may vary slightly depending on the trampoline because of other things getting in the way of a bigger pocket such as hiking straps and lacing grommets, trapeze grommets, jib strop grommets etc. We put the pocket inboard of the hiking straps on Hobie 14 and Hobie 16's on the starboard side of the trampoline. Prindle trampolines will have the zippered pocket on the port side of the trampoline inboard of the hiking straps and opposite the standard halyard pocket we include on all trampolines.
• Lace Kit - Pre cut 1/4" (and sometimes 1/8") line to lace up your new trampoline. Available in white or black.

Notes:

We have found that the spacing for the aft lacing is not always consistent from boat to boat. There should be a lacing point on center-line and then lacing points on either 8" or 9" centers. Please measure your boat and select the appropriate option above.

Non USA Nacra catamarans may require a narrower trampoline. Measure your boat to make sure it is the same width as listed below. Also click here for more info

Nacra 6.0: Trampoline Width: 76" (193 cm)

Additional Info:
